RS485 Modbus Gateway

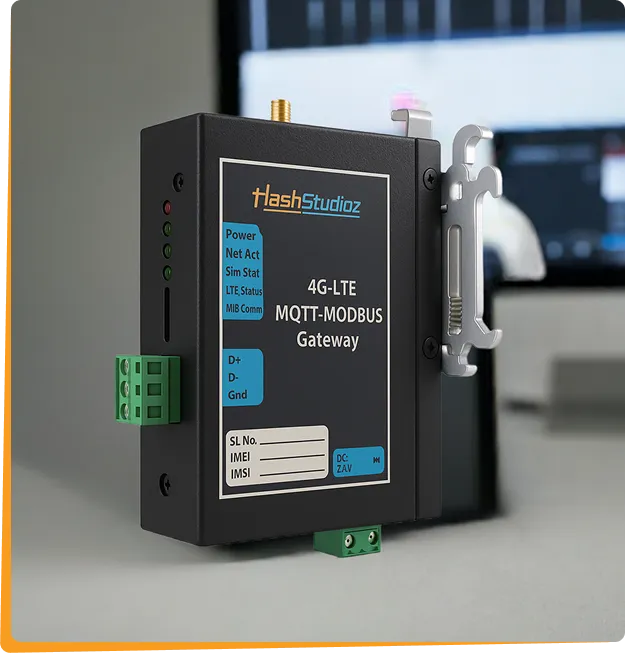

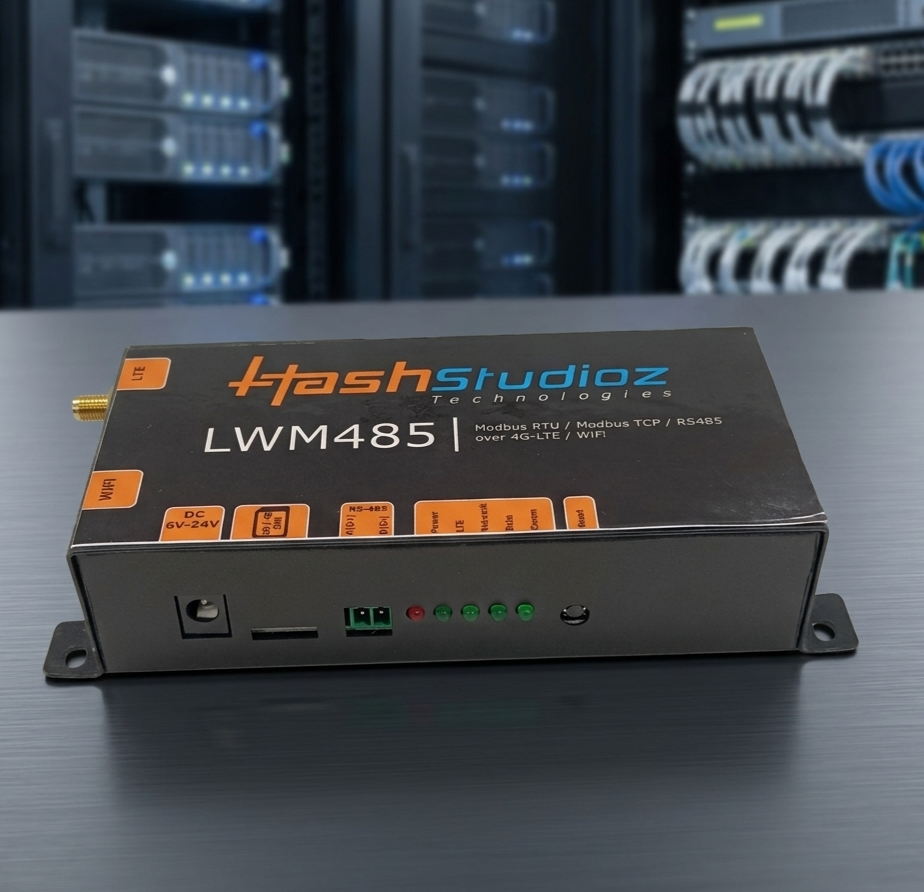

Modbus RS485 – Seamless Industrial Communication

Modbus RS485 is a widely adopted communication protocol ideal for connecting multiple industrial devices in a reliable and cost-effective manner. Our gateway enables intelligent data exchange between controllers, sensors, and cloud applications, making it a cornerstone for modern automation systems.

Multi-Device Support: Communicates with multiple Modbus RTU slaves over a single RS-485 line.
Protocol Bridging: Converts Modbus RTU to TCP, MQTT, or HTTP for cloud integration.
Remote Access: Configure and monitor devices remotely via SMS, GPRS, or IP.
Advanced Formatting: Supports byte swapping, data scaling, and custom register mapping.
Robust I/O: Includes digital and analog inputs, 4–20mA channel, and relay output for full control.

End-to-End Alarm Communication Workflow

This workflow illustrates how alarm signals are transmitted from detection devices to end users through a secure and reliable communication network. It ensures timely alerts and effective monitoring.

Fire alarm device

Coal mine alarm device

Anti-theft alarm device

RS485

◉----------◉

(Modbus RTU)

RS485 Modbus Gateway

Management Client

Network Server

Large Screen Display

App of the
household or owner

Industrial Modbus Gateway Key Features

Designed for seamless integration and reliable data communication, our Modbus Gateway offers advanced capabilities for industrial automation and remote monitoring. Below are the key highlights that make it an essential component in modern control systems:

Polls both RS-485 RTU Modbus and TCP Modbus (Multiple TCP/IP Slaves)
Byte swapping, scaling factor, and parameter datatype conversion
Event alerts: Power failure, input changes, reset, battery warnings
Modbus, I/O, and Data Logger with 4G/LAN connectivity
CSV/JSON format support for parameter packetization
Remote configuration via SMS, GPRS, or static IP server commands

Configure and read multiple slave IDs and selectable register addresses
1 x RS-485 port for Modbus RTU, 1 x TCP port for Modbus TCP, USB port for configuration
2 x Digital Inputs, 2 x Analog Channels (0–24V), 1 x 4–20mA Channel, 1 x Relay Output
Supports TCP/HTTP/MQTT/HTTPS with GET/POST methods
Transparent or inbuilt polling (ASCII/HEX/Raw HEX formats)
OTA firmware and device configuration updates

Modbus Gateway Application Areas

Meter Energy

Home Automation

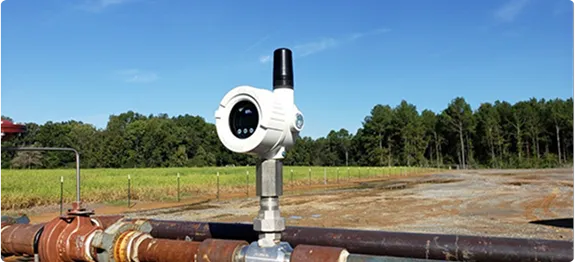

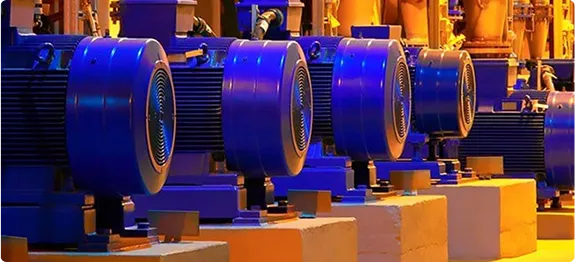

Pump & Flow Control

Solar Monitoring

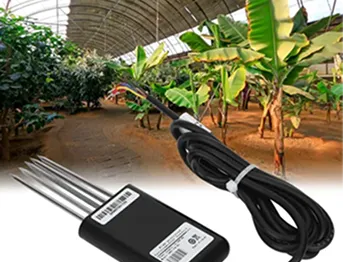

Temperature Alerts

Windmill & SCADA

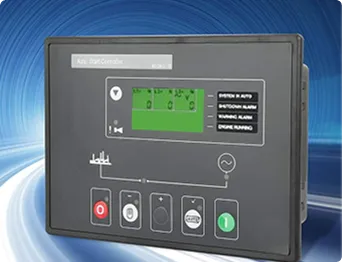

Generator Control

Pump & Flow Control

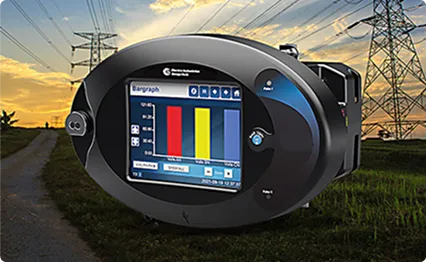

Meter Reading

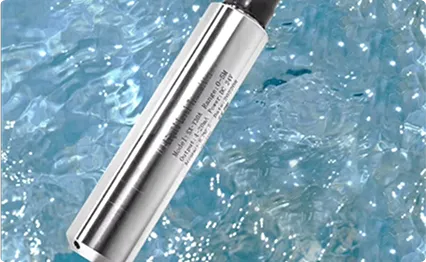

Water Level Control

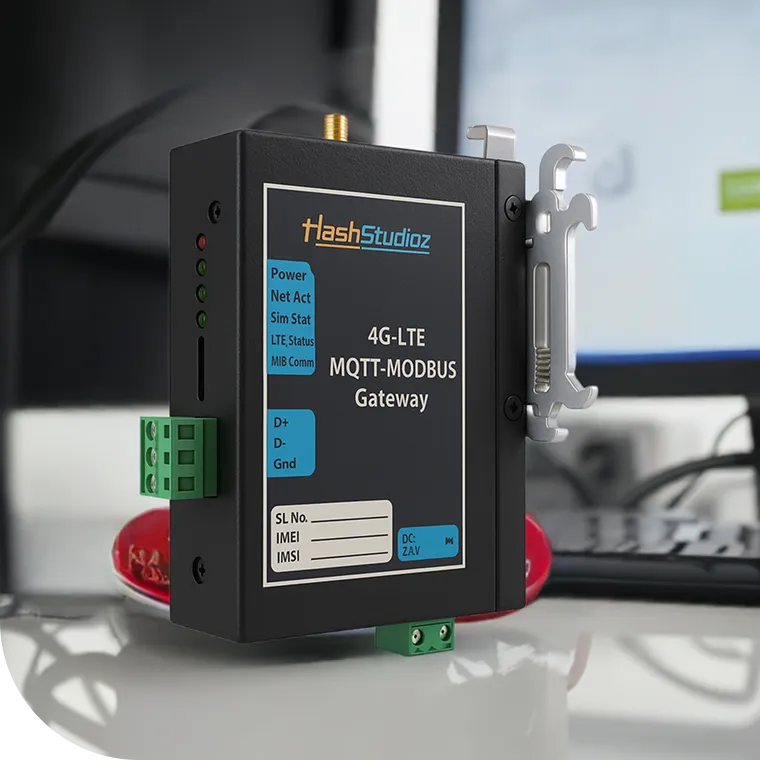

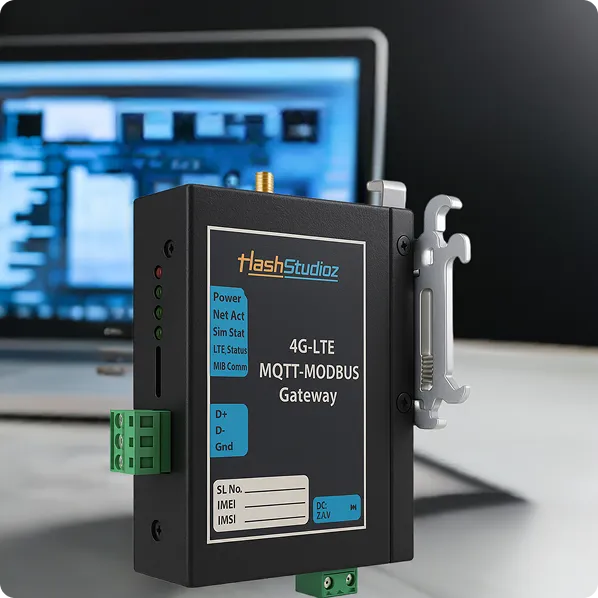

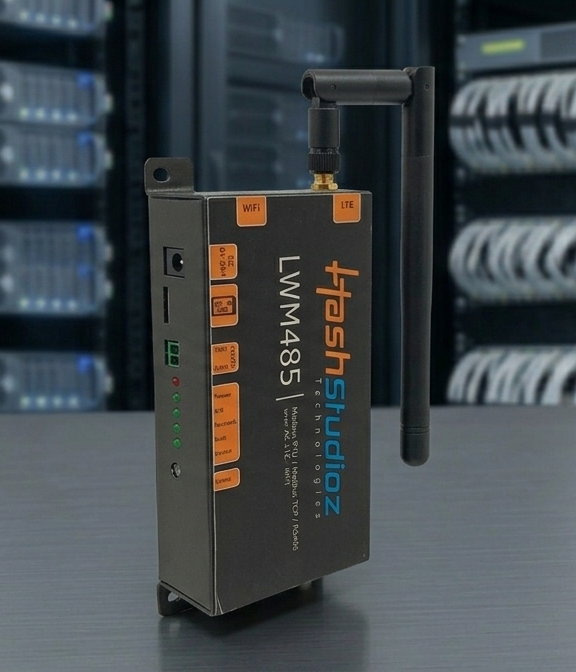

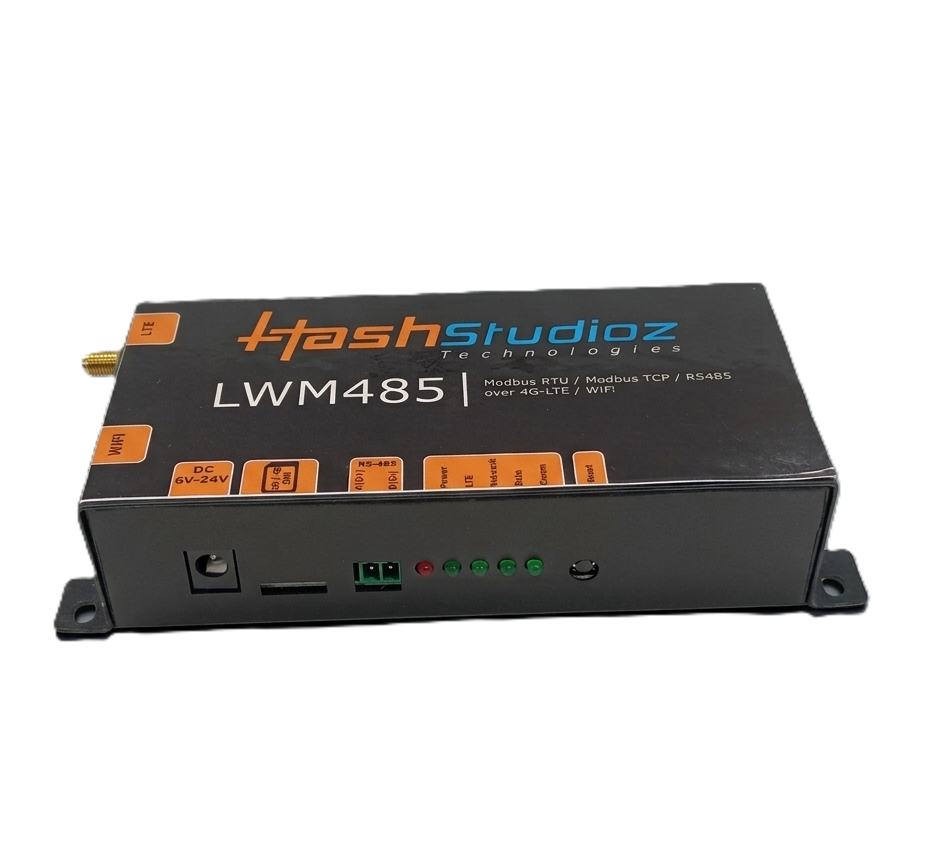

Specification of Modbus RS485 IoT Gateway

General Specifications
Product Name	RS485 Modbus to 4G/LAN IoT Gateway
Model	HSZ-RS485-GW-01
Microcontroller	Dual-core Xtensa LX6, 240 MHz 4 MB Flash, 520 KB SRAM
Connectivity
Cellular	LTE Cat 1 (10 Mbps DL / 5 Mbps UL) Bands: B1/B3/B5/B8/B39/B40/B41
LAN	10Base-T Ethernet IEEE 802.3 Compliant
Serial Communication	RS485 (MODBUS RTU supported) Configurable Baud Rate (1200–115200 bps) 1× Terminal Block
Antenna Interfaces	LTE: External (U.FL) Wi-Fi: External (U.FL)
SIM Card	Nano SIM (3FF)
Protocols & Cloud
Protocols Supported	Modbus RTU (Slave/Master) MQTT over 4G/LAN
Cloud Support	MQTT (AWS, Azure IoT, ThingsBoard, Custom Brokers) REST APIs
Interfaces & Indicators
I/O Interfaces	1× RS485 (terminal block) 1× LAN (RJ45)
Indicators	Power LED Network Status LED RS485 TX/RX Activity LED
Power & Environment
Operating Voltage	9V – 24V DC (via terminal or barrel jack)
Power Consumption	<2W average
Operating Temperature	-20°C to +70°C
Humidity Range	10% to 90% RH (non-condensing)
Physical Attributes
Enclosure	ABS Plastic / Metal DIN rail mountable (optional)
Dimensions	Approx. 100 mm × 80 mm × 30 mm
Mounting Options	DIN Rail / Wall Mount
DIN Rail / Wall Mount
Firmware Update	FOTA (Firmware Over-The-Air) via 4G or LAN
Security Features	TLS/SSL Encryption Secure Boot
Certification & Customization
Certifications	CE, RoHS (optional on request)
Customization Options	Logo, UI, Protocol Extensions, Cloud Platform Mapping
Use Cases
Use	Industrial Modbus Sensor Data Collection Solar, Water, HVAC Systems Monitoring Remote PLC Access

Frequently Asked Questions

An RS485 Modbus Gateway is an industrial network bridge that converts serial Modbus RTU and Modbus ASCII protocols into Ethernet or cellular Modbus TCP and MQTT packets. It polls connected serial slave devices (like power meters, temperature transmitters, and VFDs) across the RS-485 bus and routes telemetry data straight to SCADA platforms, DCS systems, or cloud IoT dashboards.

Supported protocols include Modbus RTU, Modbus ASCII, Modbus TCP, MQTT, MQTTS (TLS 1.2/1.3), HTTP/HTTPS REST APIs, and transparent TCP/UDP socket transmission. The gateway connects out-of-the-box with leading enterprise cloud IoT platforms including AWS IoT Core, Microsoft Azure IoT Hub, Google Cloud IoT, ThingsBoard, and custom private cloud servers.

Up to 32 standard industrial Modbus slave devices (or up to 128 with RS-485 bus repeaters) can be addressed across the differential serial loop across distances up to 1,200 meters (4,000 feet). The gateway manages polling schedules, request timeouts, and CRC error checking to guarantee data integrity across noisy industrial environments.

Hardware interfaces include a 3-pin pluggable terminal block for RS-485 (A+, B-, GND), a 10/100 Mbps auto-sensing RJ45 Ethernet port, diagnostic status LEDs (PWR, SYS, TX, RX), and an industrial 9V to 36V DC wide-input power terminal. It incorporates 1.5kV magnetic isolation, 15kV ESD surge suppression, and DIN-rail mounting brackets.

Configuration is performed using an integrated web-based GUI accessible via any standard browser, telnet console, or AT command set without requiring external configuration utilities. Administrators can remotely modify serial baud rates, configure MQTT broker credentials, define Modbus register mapping tables, and deploy secure Over-The-Air (OTA) firmware updates.

The gateway is manufactured in compliance with CE, FCC Part 15 Class A, and RoHS environmental directives. It adheres to IEC 61000-4 electromagnetic compatibility (EMC/EMI) industrial testing standards, ensuring robust resistance against electrostatic discharge, electrical fast transients (EFT), and power line voltage surges.

When primary Ethernet or cellular network connectivity is lost, the gateway activates an internal non-volatile Flash buffer to log timestamped Modbus telemetry packets locally. Upon network link restoration, the gateway automatically synchronizes the queued historical records with the cloud server without data loss or sequence corruption.
