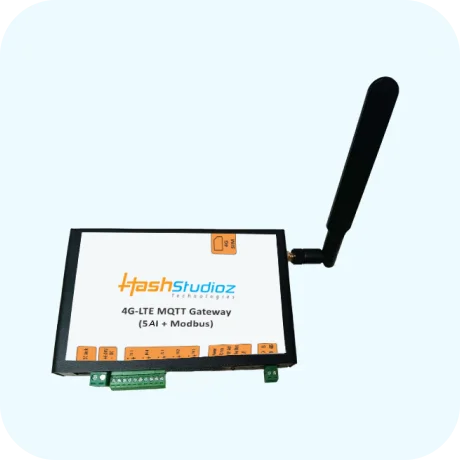

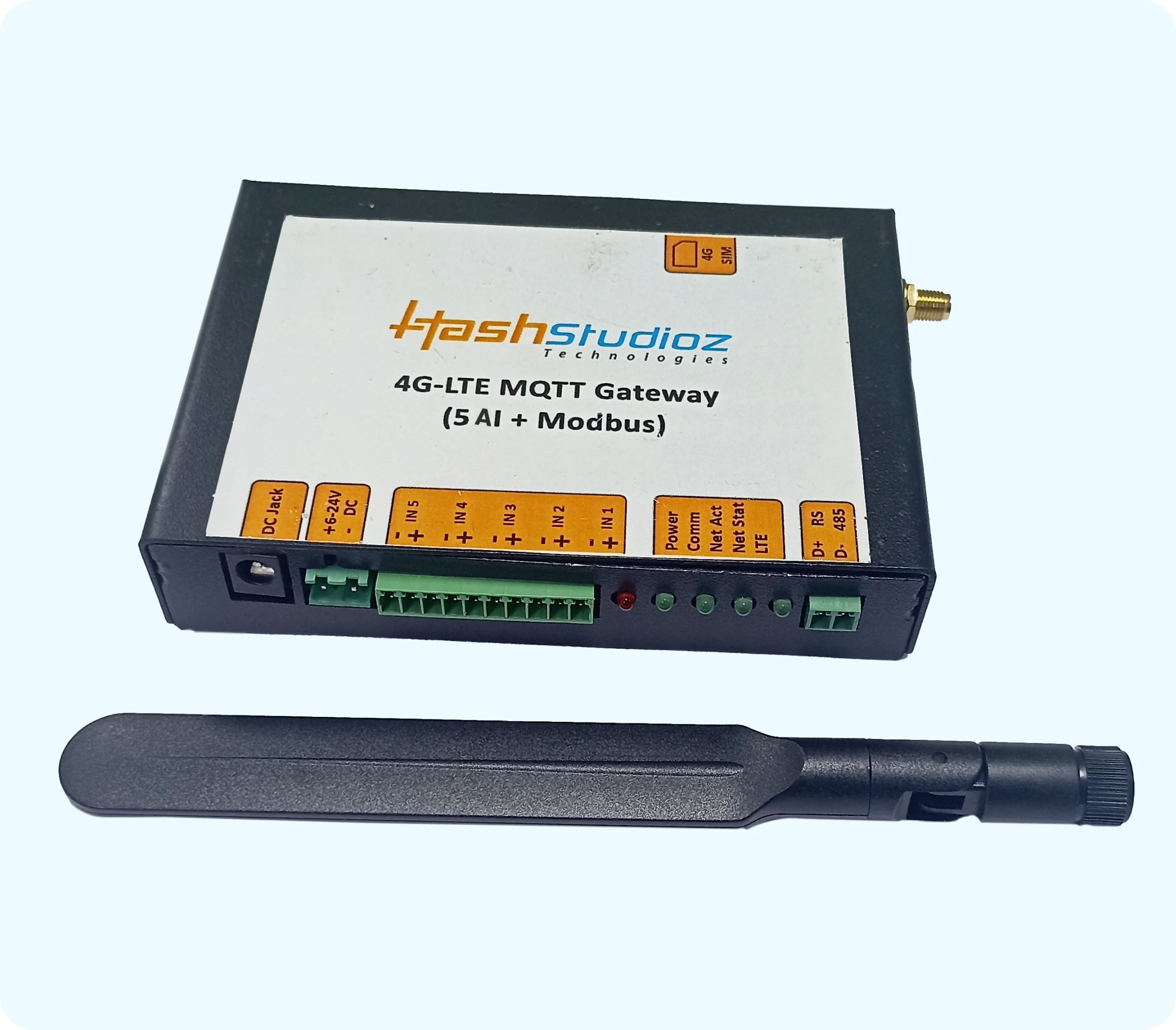

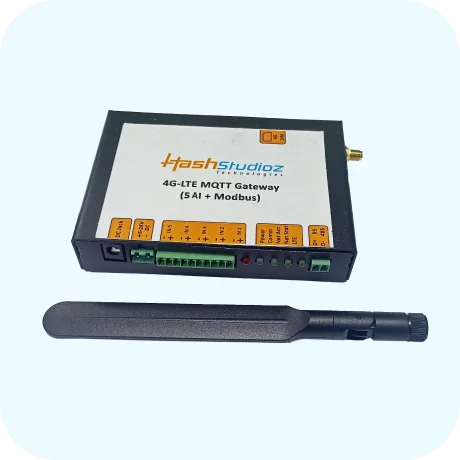

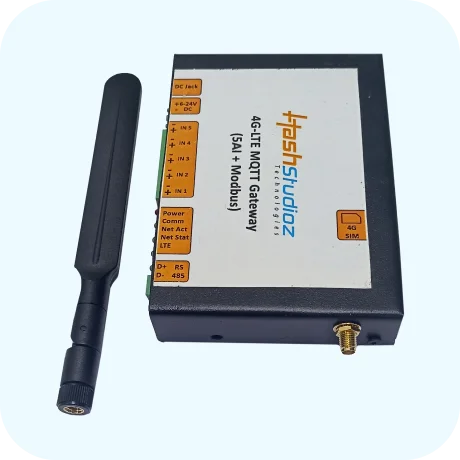

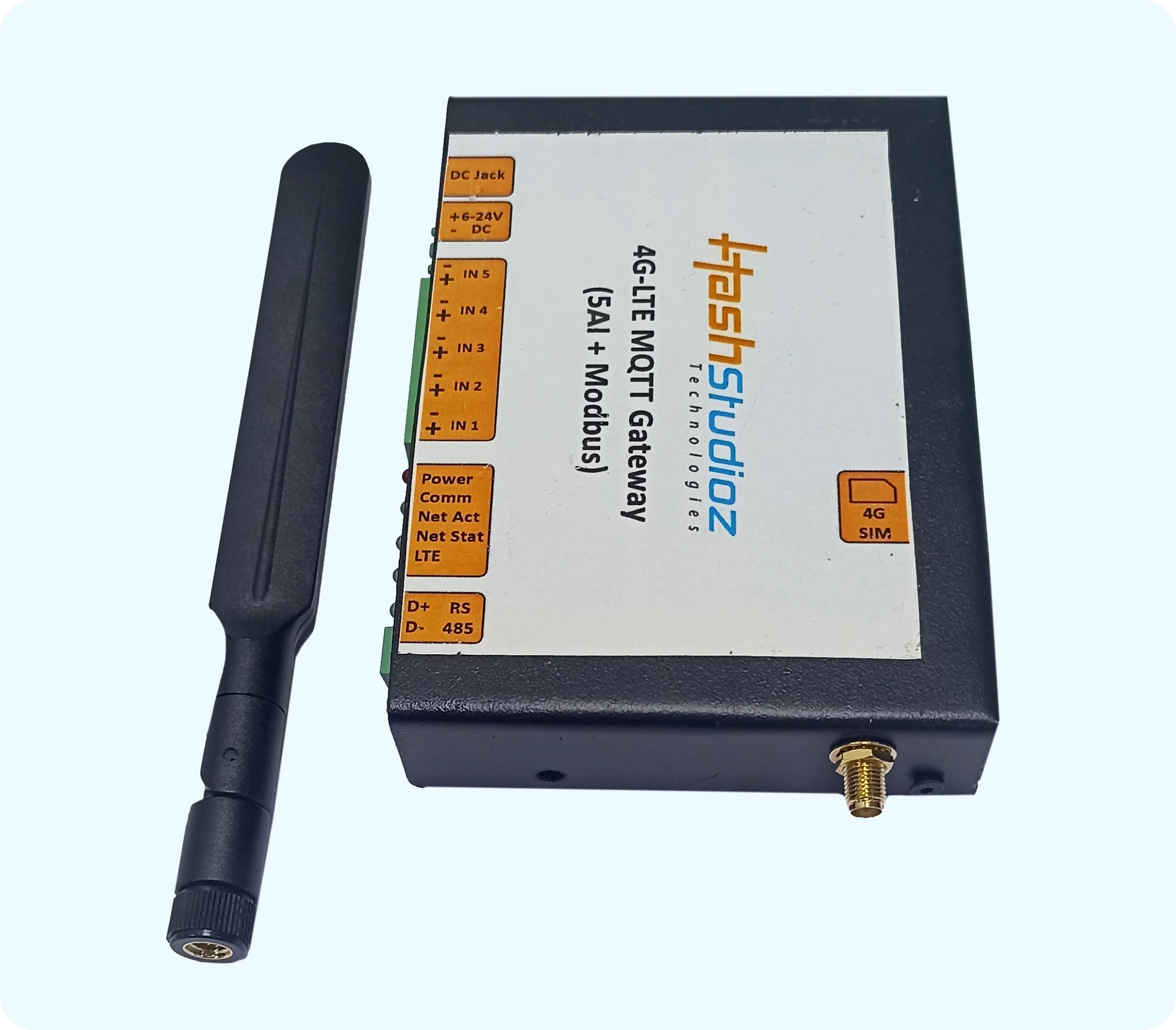

5 Analog Input Modbus RS485 Gateway

Introducing our 5 Analog Input (AI) Module, built for industrial monitoring and control. With 5 input channels and efficient 2G/4G LTE connectivity, it delivers precise data insights. Low power consumption, plug-and-play installation, and durable metal enclosure ensure seamless deployment in any environment. RS485 support and Modbus RTU protocol enable easy integration, while high-precision ADC ensures accuracy. Versatile and reliable, it's the perfect solution for industrial automation needs.

Call Us Now! Request a Quote Now!

Key Features

Modbus RTU through
RS485
Compact Din Rail
Mounting
Comprehensive Safety And Reliability
5 Analog Input (AI)
Personal Support for your Implementation

Areas of Application

Intelligent Irrigation
Automated Parking Solutions
Efficient Logistics Management
Utility Supervision
Industrial Automation Systems

Specifications

Input Channels

Input Power

Unregulated 9 – 24 VDC

Power Consumption

Less than 1 W @ 12 VDC

Indication

Power (Red), Status (Green)

Connector

3mm pitch screw terminal blocks

Enclosure

Metal Enclosure

Installation Type

Plug and Play

Connectivity

Supported RS485

Modbus Simplex

@1200bps - 115200bps

Protocol Supported

Modbus RTU

Communication Interface

2 Wire Type

Watchdog Timer

System (5 Sec) and Communication

Indication

Green for Communication Status, Sim Status & Publish

Contact Rating

4-20mA with 12-bit SAR ADC (Transient Protected)(80 dB CMRR)

Per Slave Register set

30 (maximum 30 Regs in each set)

Standard

Single-ended 12-bit ADC

Operating Temperature

0 to 65°C

Storage Temperature

-10 to 70°C

Operating Humidity

5 – 95% RH (non-condensing)

Baud Rate

9600 – 115200 Kbps (SW selectable)

FAQs

Q1. What is the purpose of the 5 Analog Input Modbus RS485 Gateway?

A1. The 5 Analog Input Modbus RS485 Gateway serves as a converter module designed to facilitate the conversion of analog input (AI) data from various controllers and devices. It enables seamless communication via the Modbus RTU Protocol using the RS485 interface.

Q2. Can this gateway support communication with multiple devices simultaneously?

A2. Yes, this gateway supports Modbus RTU communication protocol via RS485 interface, allowing communication with multiple devices simultaneously.

Q3. How can I acquire personalized support for implementation?

A3. You can acquire personalized support for implementation by contacting our customer support team. They will provide assistance tailored to your specific requirements and ensure smooth integration of the gateway into your system.

Q4. What are the areas of application where this gateway can be utilized effectively?

A4. The 5 Analog Input Modbus RS485 Gateway can be employed in various sectors including intelligent irrigation, automated parking, logistics management, utility supervision, and industrial automation systems, among others.

Q5. How does this gateway ensure seamless communication with legacy devices?

A5. Operating in half-duplex mode, it requires only two wires for transmitting and receiving data, making it compatible with legacy systems.

FAQs

Q1. What is the purpose of a 4G-LTE RS485 Modbus Gateway with 5 Digital Inputs?

A1: The 4G-LTE RS485 Modbus Gateway with 5 Digital Inputs is designed to enable communication between remote devices using Modbus protocol over a 4G-LTE network. It also allows monitoring of up to 5 digital input signals with a minimum read time of 0.5 seconds.

Q2. Is it possible to expand the number of digital inputs?

A2: No, the 4G-LTE Modbus Gateway is designed with a fixed number of 5 digital inputs. In case more inputs are needed, you may need to use additional gateways or external devices to aggregate and communicate signals.

Q3. What are the main features of the 4G-LTE RS485 Modbus Gateway?

A3: The main features of this gateway include:
- 4G-LTE connectivity for remote communication
- RS485 interface for connecting Modbus devices
- 5 digital input channels for monitoring signals
- Support for Modbus RTU and Modbus ASCII protocols
- Built-in SIM card slot for mobile network connectivity
- Secure and reliable communication with encryption and authentication

Q4. Is the gateway compatible with all Modbus devices?

A4: The gateway supports both Modbus RTU and Modbus ASCII protocols, making it compatible with a wide range of Modbus devices. For specific compatibility details, consult the gateway's documentation or contact the manufacturer.

Q5: How can digital inputs be utilized?

A4: The 4G-LTE Modbus Gateway has 5 digital input channels that can monitor the status of various devices or signals. For example, they can monitor the status of sensors, switches, alarms, or any other digital signal. It is possible to configure the input channels to trigger specific events or actions based on detected signal changes.

Q6. Can the gateway be accessed remotely for configuration and monitoring?

A6: Yes, the 4G-LTE Modbus Gateway can be remotely accessed through the mobile network connection. There are many methods for remotely configuring, monitoring, and retrieving data, including web-based interfaces, APIs, or specific software provided by the manufacturer.

Q7. What is the power supply requirement for the 4G-LTE Modbus Gateway?

A7: Typically, the gateway operates on a 12V DC power supply, but it's always recommended to refer to the product's specifications or user manual for accurate power supply requirements.

Q8. Does the gateway offer any security features?

A8: Yes, the 4G-LTE Modbus Gateway has built-in security features to protect communication and data integrity. These include encryption, authentication, and secure protocols to ensure a secure connection between the gateway and the connected devices.
