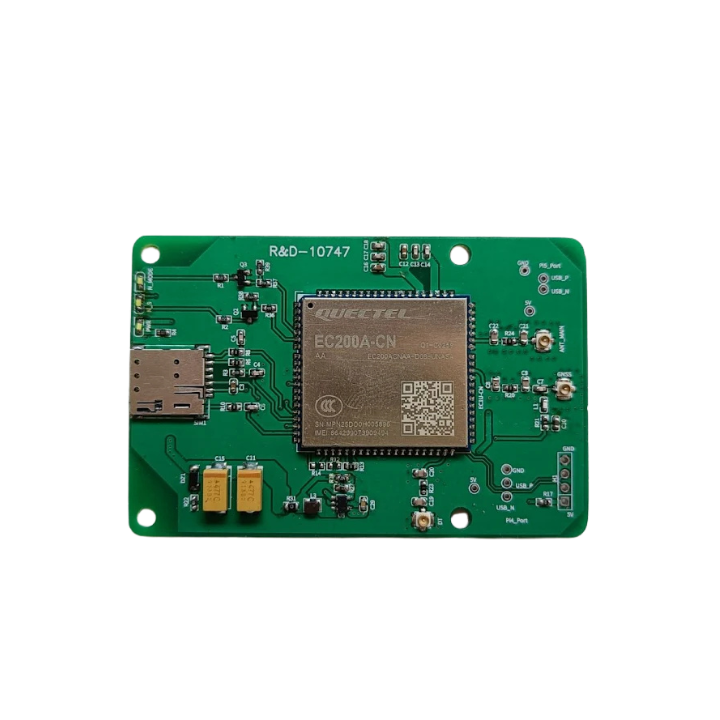

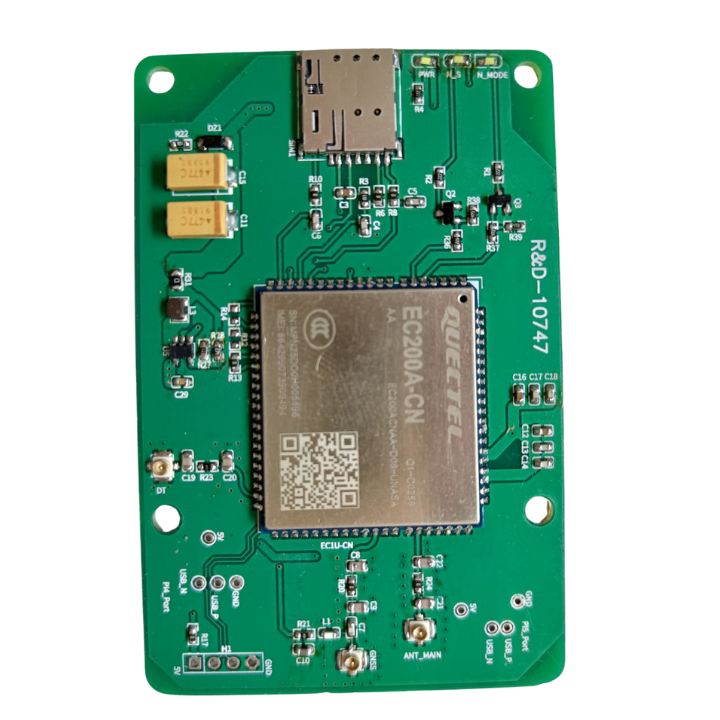

Raspberry Pi 4G LTE HAT with Quectel EC25 (CAT4) & EC200 (CAT1)

₹4,500.00 + GST

The Raspberry Pi 4G LTE HAT with Quectel EC25 (CAT4) and EC200 (CAT1) modules brings high-speed cellular connectivity to Raspberry Pi 4 and Raspberry Pi 5. It supports Nano SIM cards, 4G/3G/2G networks, and enables reliable IoT, GPS tracking, industrial automation, and remote monitoring applications with plug-and-play setup.

✓ Quectel-Powered Connectivity: Supports EC25 (CAT4) & EC200 (CAT1) LTE modules.
✓ High-Speed 4G LTE: Up to 150 Mbps downlink and 50 Mbps uplink for fast data transmission.
✓ Plug & Play Design: Simple setup compatible with Raspberry Pi 4 and 5 boards.

Call Us Now! Buy Now

Key Features of Raspberry Pi 4G LTE HAT

Compatibility: Works with Raspberry Pi 4 and Raspberry Pi 5.
LTE Modules: Quectel EC25 (CAT4) and EC200 (CAT1) options.
SIM Support: Nano SIM slot compatible with all major LTE networks.
Power Management: Low-power operation with complete power-off capability.
Interfaces: UART, GPIO, and USB connectivity for control and data communication.

Specifications of Raspberry Pi 4G LTE HAT

Communication Specification

LTE Module

Quectel EC25 (CAT4) / EC200 (CAT1)

Supported Networks

4G LTE / 3G / 2G

SIM Slot

Nano SIM (Universal)

Data Speed

150 Mbps Downlink / 50 Mbps Uplink

Interfaces

UART, GPIO, USB 2.0

Technical Specification

Input Voltage

5V DC (Powered via Raspberry Pi GPIO)

Operating Temperature

-40°C ~ +80°C

Form Factor

Compact HAT design compatible with Pi 4/5

Power Management

Low power with full disable mode for IoT devices

Applications

Ideal Use Cases

IoT gateways, GPS tracking, remote monitoring, industrial automation, smart city systems, and Raspberry Pi projects requiring cellular connectivity.

Use Cases of Raspberry Pi 4G LTE HAT

IoT Gateways: Enable real-time communication between edge devices and cloud servers.
Industrial Automation: Deploy in PLC and SCADA-based systems for wireless control.
GPS Tracking: Use in fleet management and asset tracking applications.
Smart City Projects: Connect IoT devices like sensors, meters, and controllers over 4G.
Remote Monitoring: Enable off-grid data communication in harsh or isolated locations.

Why Choose HashStudioz 4G LTE HAT for Raspberry Pi?

The HashStudioz Raspberry Pi 4G LTE CAT4 HAT is a complete cellular communication module built for performance, reliability, and versatility. Its Quectel-powered modem, plug-and-play setup, and industrial-grade design make it the best choice for:

IoT Developers: Ideal for building connected IoT devices and prototypes.
Engineers: Perfect for designing and testing industrial communication systems.
Makers: Great for exploring 4G LTE and IoT-based hardware projects on Raspberry Pi.

FAQs – Raspberry Pi 4G LTE CAT4 HAT with Quectel Module

Q1: What is the Raspberry Pi 4G LTE CAT4 HAT used for?

A1: The Raspberry Pi 4G LTE CAT4 HAT enables high-speed 4G cellular connectivity for Raspberry Pi boards. It’s ideal for IoT projects, industrial automation, GPS tracking, remote monitoring, and M2M (machine-to-machine) communication where stable mobile data is essential.

Q2: Is the 4G LTE HAT compatible with Raspberry Pi 4 and Raspberry Pi 5?

A2: Yes, it’s fully compatible with both Raspberry Pi 4 and Raspberry Pi 5. The HAT connects directly to the GPIO interface and supports operating systems like Raspberry Pi OS, Ubuntu, and other Linux-based distributions.

Q3: Which Quectel LTE modules does this Raspberry Pi HAT support?

A3: The HAT integrates Quectel EC25 or EC200 LTE modules. The EC25 (CAT4) offers up to 150 Mbps download and 50 Mbps upload speeds, while the EC200 (CAT1) provides optimized connectivity for IoT and low-data applications.

Q4: Can I use any SIM card with the Raspberry Pi 4G LTE HAT?

A4: Yes. It supports Nano SIM cards from all major 4G, 3G, and 2G network providers. The HAT is compatible with both prepaid and IoT SIMs for local or global cellular connectivity.

Q5: How do I connect and set up the 4G LTE HAT on my Raspberry Pi?

A5: It’s a plug-and-play setup. Mount the HAT onto your Raspberry Pi board, insert a Nano SIM card, connect antennas, power up the system, and the module will auto-detect the LTE network. You can access data via UART, USB, or PPP interface.

Q6: Can this 4G LTE module be used for GPS tracking or remote monitoring?

A6: Absolutely. The Quectel EC25 module includes GNSS/GPS support, making it ideal for GPS tracking, fleet management, remote asset monitoring, and smart IoT systems requiring both location and data connectivity.

Q7: Is the Raspberry Pi 4G LTE CAT4 HAT suitable for industrial or outdoor use?

A7: Yes. It’s built with industrial-grade reliability and can operate within a wide temperature range of -40°C to +80°C. This makes it perfect for outdoor, factory, and remote IoT deployments where durability and performance matter.
