Embedded systems are designed to handle tasks efficiently, often within strict power, time, and resource constraints. As devices become more intelligent and connected, the demand for faster and more reliable data handling increases. According to a report by MarketsandMarkets, the embedded systems market is projected to reach $137.9 billion by 2027, growing at a CAGR of 6.1%. This growth reflects the importance of optimizing system resources, and one key optimization technique is Direct Memory Access (DMA).
DMA is a hardware feature that significantly improves data transfer efficiency by allowing certain subsystems to access memory independently of the central processing unit (CPU). It reduces CPU load, minimizes latency, and enhances real-time performance — all critical for embedded applications.
Table of Contents
What Is Direct Memory Access (DMA)?

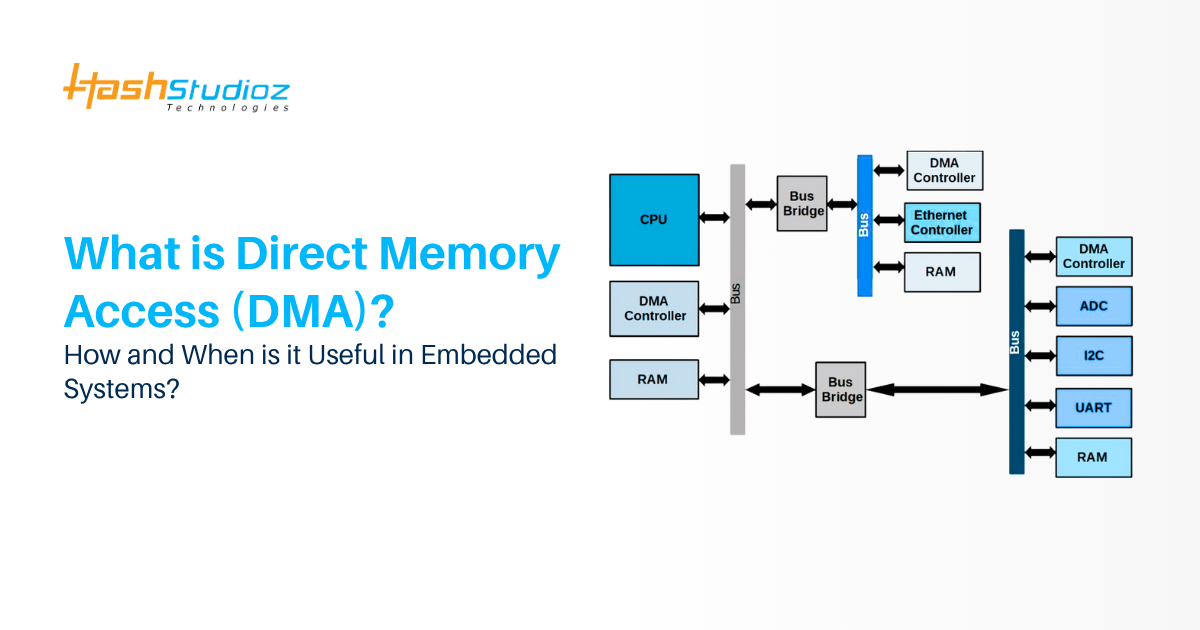

DMA is a feature of computer systems that allows hardware subsystems to read from or write to main memory without involving the CPU. In embedded systems, DMA acts as a bridge between peripherals (like sensors, ADCs, and communication modules) and memory. Rather than having the CPU manually copy data byte-by-byte, a DMA controller manages the entire transfer, freeing the CPU to perform other tasks.
How It Works
- A peripheral device generates a DMA request.
- The DMA controller takes control of the memory bus.
- Data is transferred between memory and the peripheral.
- Once complete, the controller notifies the CPU with an interrupt or status flag.
DMA supports various transfer modes such as:
- Burst Mode – Transfers blocks of data continuously.
- Cycle Stealing – Shares memory cycles between CPU and DMA.
- Demand Mode – Transfers data only when requested by the peripheral.
DMA in Embedded Systems
Embedded systems often operate in environments where time and energy efficiency are vital. Traditional data transfers require the CPU to read and write every data byte, which can significantly burden processor time and energy consumption. DMA allows for offloading such tasks, making it highly valuable in systems with real-time constraints.
Common Use Cases
- Sensor Data Acquisition: When sampling high-speed sensors, DMA can move data from ADCs to memory buffers without CPU involvement.
- Audio and Video Streaming: In multimedia applications, continuous data flow requires non-blocking transfer—DMA makes this possible.
- Communication Interfaces: Interfaces like SPI, UART, and I2C benefit from DMA by offloading data transfers.
- Memory-to-Memory Transfers: DMA can be used to copy or initialize large data blocks internally without CPU.
Benefits of DMA in Embedded Software Development
DMA is not just a performance booster—it can shape the architecture and efficiency of an entire embedded product. Let’s examine its key benefits:
1. Reduced CPU Overhead
Without DMA, the CPU spends cycles performing memory transfers. With DMA, the CPU is free to execute critical logic, process user input, or enter low-power states.
2. Improved System Performance
By parallelizing memory transfers and processing, the overall throughput of the system improves. This is especially important in multi-tasking RTOS environments.
3. Real-Time Data Handling
DMA supports deterministic timing in applications where data must be handled in real-time, like medical instruments or industrial control systems.
4. Lower Power Consumption
Reduced CPU intervention translates into lower power usage, which is essential for battery-powered or portable embedded devices.
When Should DMA Be Used?
DMA is a powerful tool, but it’s not required in every case. Application-specific needs should guide its use.
Use DMA If:
- Your system deals with large volumes of data.
- CPU utilization is a bottleneck.
- Real-time performance is non-negotiable.
- Power efficiency is a design goal.
Avoid DMA If:
- The overhead of configuring DMA outweighs its benefits.
- Data volumes are small and infrequent.
- Peripherals don’t support DMA.
DMA Configuration Considerations
Implementing DMA correctly in an embedded system requires careful planning:
1. Peripheral and MCU Support
Ensure the microcontroller supports DMA for your peripherals. Most modern 32-bit MCUs offer multiple DMA channels and priority levels.
2. Memory Access Conflicts
If DMA and CPU access the same memory simultaneously, data integrity issues can arise. Use proper synchronization mechanisms like double-buffering.
3. Interrupt Handling
DMA completion is usually flagged via interrupts. Efficient interrupt handling logic is essential to avoid latency spikes.
4. Data Alignment
DMA controllers may require data to be aligned in memory to certain boundaries. Misalignment can cause transfer failures.
5. Transfer Size and Mode
Select appropriate burst size and transfer mode. Misconfigured settings may result in incomplete transfers or peripheral stalls.
DMA vs. CPU-Controlled Transfers: A Quick Comparison
| Feature | CPU-Controlled Transfer | DMA Transfer |
| CPU Involvement | Full | Minimal |
| Power Efficiency | Lower | Higher |
| Transfer Speed | Moderate | High |
| Suitable for Large Data | No | Yes |
| Complexity | Simple | Requires Configuration |
| Real-Time Capable | Limited | Strong |
Integration of DMA in Embedded Software Services
DMA is a low-level feature that must be tightly integrated with software architecture. At HashStudioz, our embedded software services include careful analysis of system requirements to determine when DMA can be a performance enabler.
Our team ensures:
- Optimal buffer management
- Safe interrupt integration
- Efficient DMA channel allocation
- System stability across DMA and CPU tasks
If your application demands high-throughput data handling or energy efficiency, partnering with an experienced Embedded Software Development team like HashStudioz can help you unlock the full potential of your hardware.
Real-World Example: DMA in an IoT Weather Station
Let’s consider an IoT-based weather station with sensors for temperature, humidity, and pressure. These sensors continuously send data to the MCU. Without DMA, the CPU polls each sensor and manually stores data in memory—consuming both time and power.
By using DMA:
- ADC data is automatically transferred to a buffer.
- The CPU wakes up only when the buffer is full.
- Data is transmitted over UART to a cloud gateway using another DMA channel.
This approach reduces power consumption and allows the CPU to remain idle or handle other tasks like sleep mode management and sensor calibration.
Final Thoughts
Direct Memory Access plays a significant role in modern embedded design. From improving efficiency to ensuring system responsiveness, DMA enhances both performance and reliability. It requires careful planning and a deep understanding of both hardware and software.
If you’re building an embedded solution that involves high-speed data capture, peripheral integration, or multitasking, DMA can help meet your performance and power goals. But correct implementation is key.
