Clean air is essential for our health and well-being, but with rising pollution, it’s becoming harder to know if the air we breathe is safe. This is where air quality sensors like the FS00802G come in, acting like tiny sentinels that measure key pollutants in the air around us.
Think of these sensors as your air detectives, sniffing out things like dust particles (PM2.5), carbon dioxide (CO2), and even harmful chemicals like formaldehyde (HCHO). They do this using clever technology, and while the details might be complex, the result is simple: a number representing the level of each pollutant.
But how do we access this information, you ask?
Well, that’s where IoT gateways like the HashStudioz RS-485 gateway come in.
Instead of manually taking air samples and sending them to a lab (which can be expensive and time-consuming), these sensors and gateways give you real-time information right on your screen.
Table of Contents
Understanding the FS00802G Air Quality Sensor
The multi-parameter air quality sensor FS00802G is capable of real-time detection and output of several air quality parameters, including temperature, humidity, ozone, alcohol, methane, ammonia, hydrogen sulfide, sulfur dioxide, and PM2.5, PM10, and PM1.0.
It supports serial port RS485, 4G, Bluetooth, WIFI, and other output methods, which greatly facilitates air quality detection and the Internet of Things. Whether you’re concerned about indoor pollution, curious about outdoor air, or simply want to breathe easier, the FS00802G empowers you to take control.
| Specification | Specification |
| Detection parameters | PM2.5, CO2, HCHO, TVOC, Temperature, Humidity, light and noise.,etc. |
| Working voltage | DC 10V~30V (standard 24V) |
| Working current | ≤200mA |
| Stable schedule | 2min |
| Detection frequency | Data is updated 1 time per second (default) |
| Output method | Default: Modbus-RS485 |
| Optional: Analog, 4G, WIFI, Bluetooth, Lora, etc. | |
| Product material | ABS flame retardant shell |
| ABS flame retardant shell | ABS flame retardant shell |
| Reference Size | Reference Size |
| Operating Temperature | -10℃～50℃ |
| Operating Humidity | Operating Humidity |
| Storage Temperature | -20℃～60℃ |
| Storage Humidity | 0～99%RH |
Understand HashStudioz RS 485 IoT Gateway
An RS-485 IoT Gateway is a device that allows you to connect multiple devices and to the internet. This is useful for devices that are far away from each other and cannot be directly connected. The RS-485 IoT Gateway supports Modbus RTU to Modbus TCP, which means that it can convert data from one format to another. This makes it possible to connect devices that use different communication protocols.
The RS-485 IoT Gateway has several features that make it useful for industrial applications, such as:
- It can be used to collect data from sensors and other devices.
- Ethernet interface
- Wi-Fi Antenna
- Operating temperature between -40℃ to 85℃
- The gateway operates on a voltage range of 6-30v.
- The gateway uses a microSIM card with 4G data capability.
- It attaches IEEE 802.11b/g/n network devices with serial and Ethernet ports.
- It handles Virtual COM, TCP server/client, UDP server/client, and HTTPS client.
- It provides Modbus RTU to Modbus TCP support.
- With just one RJ45 Ethernet interface, it offers numerous networking modes.
- Specific MQTT/SSL firmware

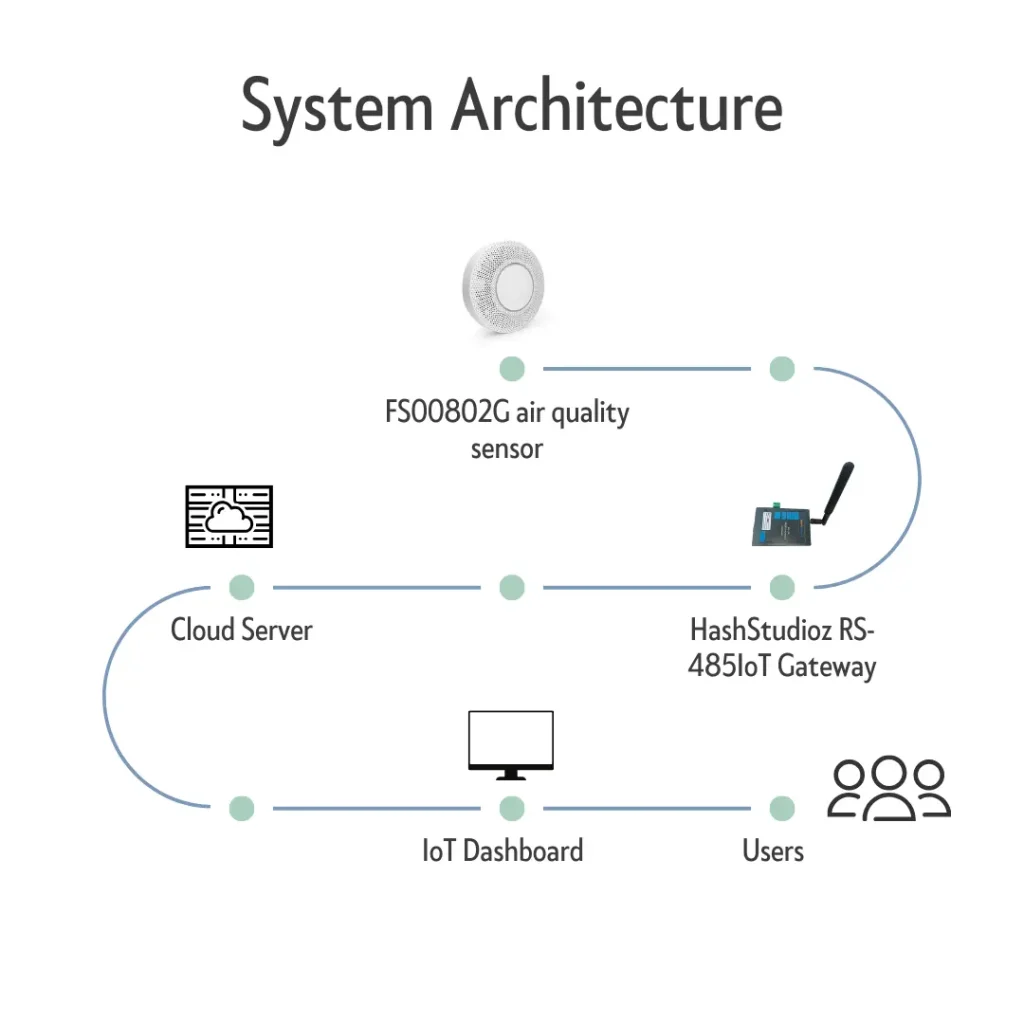

System architecture
The system consists of the following three main parts:
- FS00802G air quality sensor positioned in an outdoor environment for measuring the different air quality indicators such as PM2.5, PM10, CO2
- The HashStudioz RS-485 IoT gateway transmits data securely over Wi-Fi with low power consumption to cloud
- A cloud server
- A web-based user application(IoT Dashboard) to display real-time, historical data, and interactive charts.
How RS485 IoT Gateways Read Data from FS00802G Sensor and visualize on the IoT dashboard
Our IoT gateway serves as the cornerstone of our air quality monitoring solution, providing a robust platform for data aggregation, analysis, and visualization. Designed with versatility and scalability, our gateway facilitates seamless integration with a wide range of sensors, including the FS00802G air quality sensor.
Our IoT gateway employs advanced data analytics algorithms to parse, analyze, and visualize air quality data collected from the FS00802G sensor. Through intuitive dashboards and graphical representations, users can gain valuable insights into air quality trends, fluctuations, and potential environmental risks.
Step 1: Data Acquisition from FS00802G Sensor
The journey begins with the FS00802G sensor diligently collecting air quality data. Equipped with advanced sensing technologies, it measures various parameters such as particulate matter (PM2.5 and PM10), carbon dioxide (CO2), temperature, and humidity. The sensor communicates this data to the RS485 IoT gateway using the RS485/Modbus communication protocol, ensuring reliable and robust data transmission.
Step 2: RS485 Gateway Data Reception
Upon receiving data from the FS00802G sensor, the RS485 IoT gateway springs into action. It acts as a vigilant receiver, capturing the incoming data packets and preparing them for processing. It establishes connections with sensors using Modbus RTU for serial communication. It retrieves various data types like pm2.5, pm10, pm1.0, TVOC, temperature, humidity, ozone, alcohol, methane, ammonia, hydrogen sulfide, sulfur dioxide, and other air quality indicators based on configured registers.
Step 3: Data Processing and Conversion
The RS485 IoT gateway serves as the brain of the operation, processing, and converting raw data into a standardized format. This involves parsing the data, validating its integrity, and converting it into a format suitable for transmission.
Step 4: Transmission to Cloud Server Platform
With the data processed and formatted, the RS485 IoT gateway equipped with the Modbus protocol, embarks on its next mission, As the IoT gateway acts as a central hub, it continuously ingests streams of data payloads from the sensor. These raw payloads, containing valuable sensor readings, are then processed and transformed into a standardized format. Subsequently, the gateway uploads this streamlined data to the cloud server, ensuring its swift and reliable delivery.
Step 5: Visualization and Actionable Insights

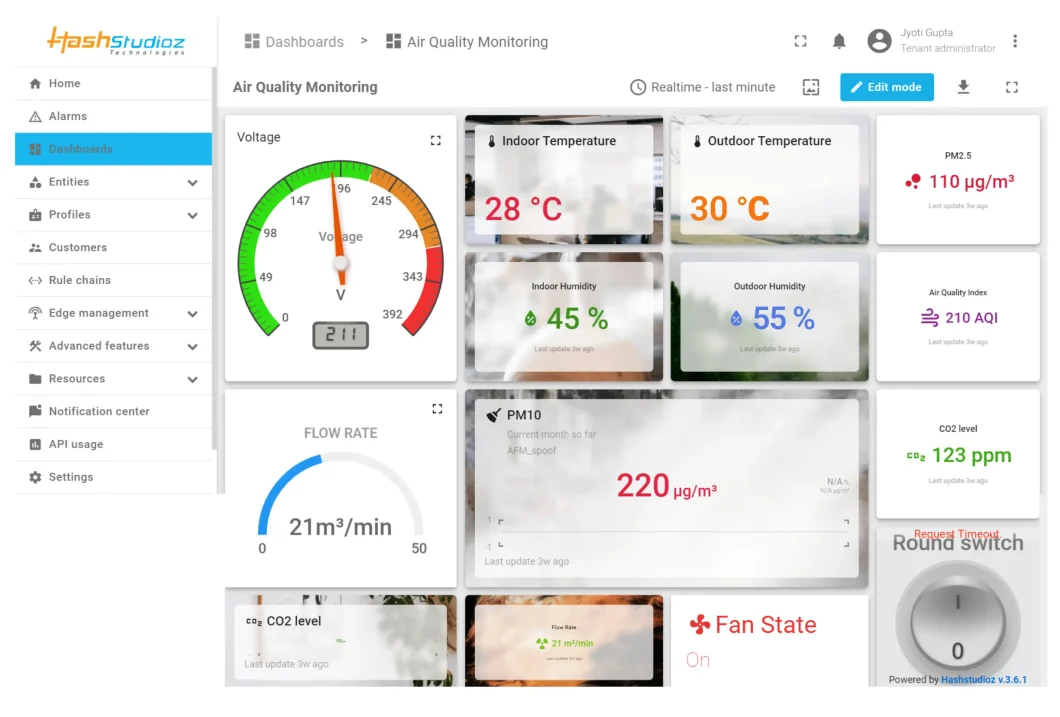

Finally, you can access air quality data arriving at its destination: the dashboard from the cloud server. Here, it comes to life through intuitive visualizations and interactive charts. Users can monitor real-time air quality parameters, track historical trends, and set up alerts for anomalous readings. With actionable insights, stakeholders can make informed decisions to improve environmental conditions and enhance public health.
Why HashStudioz RS-485 IoT Gateway?
It’s simple: Our IoT gateway is designed for ease and efficiency. It runs independently, consumes minimal power, and sends data using less bandwidth, perfect for long-range monitoring. Plus, it works with open standards, making it flexible and future-proof.
To ensure accurate readings, an air intake hole ensures fresh samples reach the sensor. All this data then flows to a user-friendly IoT dashboard and GUI, presenting air quality information in a clear and interactive format.
The result? Accurate, accessible air quality monitoring for homes, businesses, or even entire cities.
Want to implement this IoT Gateway? HashStudioz Technologies can help! Explore our RS-485 IoT Gateway offerings and make AQI monitoring easy.
FAQs
How does the HashStudioz RS-485 IoT Gateway work?
Imagine the gateway as a translator between your air quality sensor and the internet. It receives data from the sensor (like PM2.5 levels), converts it into a format computers understand, and then sends it securely to the cloud. Then you can access data remotely from the cloud.
What are the benefits of using an IoT gateway for air quality monitoring?
- Remote access: Check your air quality from anywhere with an internet connection, no need to be physically present.
- Real-time updates: Get instant information about air quality changes, not just daily reports.
- Easy setup: No complicated wiring, just plug and play!
- Alerts: Get notified when pollution levels become unhealthy.
- Data analysis: Track trends and identify patterns in your air quality data.
Where can I buy the HashStudioz RS-485 IoT Gateway?
You can find it on the HashStudioz Technologies website or drop a mail at info@hashstudioz.com for more information.
Can I use this system to monitor air quality in my home?
Absolutely! This system is perfect for homes, businesses, and even entire cities.
Do you offer any training or support for using this system?
HashStudioz Technologies offers support for using this system.
Can I customize the system to meet my specific needs?
While the system has standard features, HashStudioz still offers customization options depending on your requirements.
